/ Elco Lighting 4" New Construction Plaster Frame, 12.5–44.1W,...

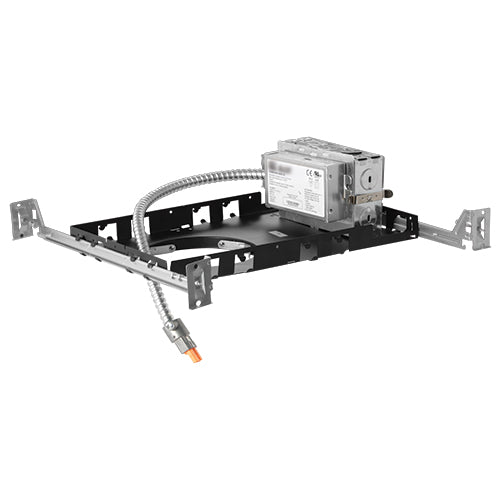

Elco Lighting 4" New Construction Plaster Frame, 12.5–44.1W, 120/277V, 0-10V/Triac/ELV Dimming, Emergency Backup, E4LFU16D2-EM1
- ROCK SKU: ELC-E4LFU16D2-EM1
- UPC:
- MFG Part #: E4LFU16D2-EM1
$216.00
The Elco Lighting E4LFU16D2-EM1 is a 4" new construction plaster frame housing with integrated driver for commercial and residential recessed lighting on 120/277V systems, with an optional 90-minute emergency backup at 120/277 VAC, 60Hz. The Generation 2 housing accepts a separately sold LED light engine and supports 0-10V, Triac, and ELV dimming to 1%, including Sunset and Lutron compatibility, across a wattage range of 12.5W to 44.1W maximum. Constructed from 16-gauge galvanized steel with pre-installed True Nail hanger bars, it fits T-grid and drop ceiling applications and is cULus listed for damp location.
| Watts | 12.5–44.1W (with compatible LED module) |
| Lumens | 850–3,000 lm (with compatible LED module) |
| Voltage | 120/277V or 120V |
| Dimmable | 0-10V, Triac, ELV (1%), Sunset, Lutron |
| Emergency Backup | 90 minutes (120/277 VAC, 60Hz) |
| Power Factor | ≥0.9 |
| Listings | cULus Listed (Damp Location; Wet Location with select trims) |
| Generation | Gen 2 (LED Light Engine sold separately) |
