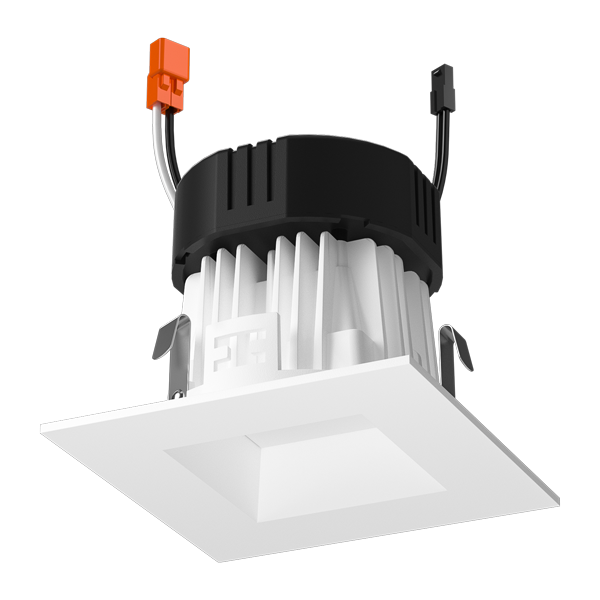

Elco Lighting 4" Koto Square Reflector, 10/14/18W, CCT Selectable, CRI90+, 0-10V/Triac/ELV, E4CKT35DX
- ROCK SKU: ELC-E4CKT35DX
- UPC:
- MFG Part #: E4CKT35DX
$129.51
The Elco Lighting E4CKT35DX is a 4" Square LED Reflector Insert with five-CCT and three-lumen field switching, compatible with ELCO Ply System housings for new construction, remodel, or retrofit applications. Three selectable wattage/lumen steps — 1000 lm (10W), 1400 lm (14W), and 1800 lm (18W) — combine with field-selectable CCT (2700K–5000K), CRI 90+, and a 0-10V/Triac/ELV dimmable driver at 120/277V. ETL listed for wet location, CA Title 24 JA8-2022-E compliant, and rated for 50,000 hours L70.
| Watts | 10/14/18W (Field-Adjustable) |
| Lumens | 1,000/1,400/1,800 lm (Field-Adjustable) |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| Voltage | 120/277V |
| Dimming | 0-10V, Triac/ELV |
| CRI | 90+ |
| Wet Location | Listed |
| Rated Life | 50,000 hours L70 |
| Finish | White |
