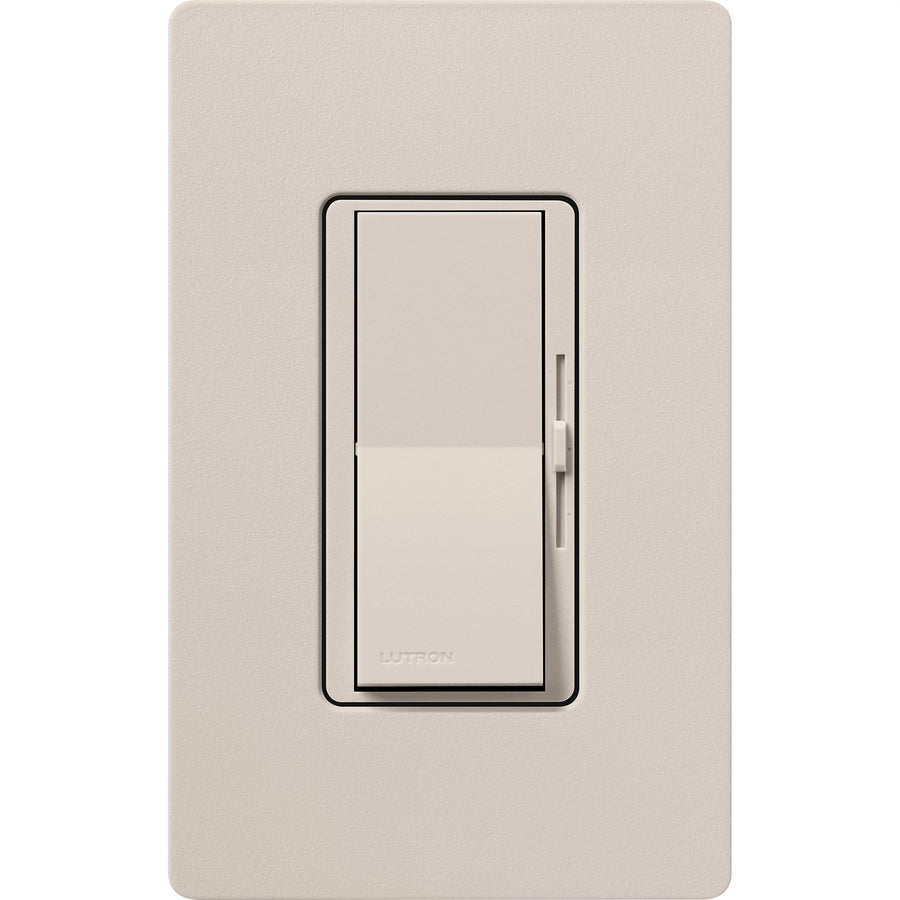

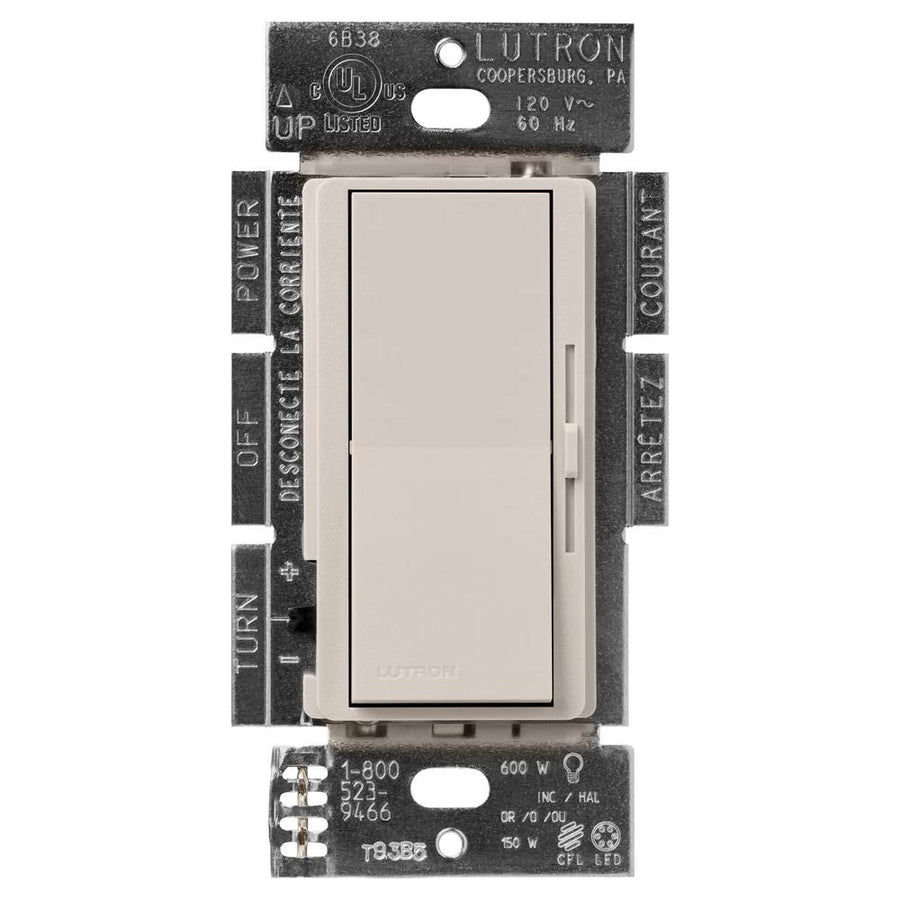

Lutron Diva 3-Speed Fan Control, 1.5A, Single Pole/3-Way, No Neutral Required, 120V, DVSCFSQ-F-TP, Taupe
- ROCK SKU: LUT-DVSCFSQ-F-TP
- UPC: 027557503747
- MFG Part #: DVSCFSQ-F-TP
$61.45
$38.41
Estimated Lead Time: 2-3 weeks
The Lutron Diva 3-Speed Fan Switch helps achieve the ideal comfort level for any home by controlling a single fan up to 1.5 Amps. The intuitive rocker switch turns the fan on/off to a preset and the linear slider adjusts between 3 speeds (Low, Medium and, High). Install with Lutron Claro Switches in 3-way applications. Coordinating Claro wall plates and 3-way switches sold separately. Available in 20+ colors to consistently match any Lutron device.
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.25 LBS
Controls 1.5 A fan. Paddle turns on/off. Slide up to increase speed, down to decrease speed. 3 quiet fan speeds for increased comfort. For use with only one ceiling paddle fan. Does not include locator light. Designed to prevent motor hum.
- Includes (1) 3-speed fan switch; Satin finish
- No Neutral Required; 120V
- Rated up to 1.5 Amp of indoor ceiling paddle fans
- One (1) ceiling paddle fan only per fan control; not compatible with fans with proprietary remotes or DC motors
- 3-way compatible with existing switches
- Wire-lead connections
- Large paddle switch turns fan on and off to preset level and slider adjusts fan speed
- Provides 3 quiet fan speeds for comfort
- Fits large designer-style openings; Available in in 20+ colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
| Actuator | Paddle switch |
| Voltage Rating | 120 |
| Mounting | Wallbox |
| Contact Rating | 1.5 |
| Application | Fan Control |
| Amperage Rating | 1.5 |
| Wattage | 180 W |
| Type | Fan control, 3-way/single-pole |
| Standard | UL, CSA, NOM |
| Enclosure | Plastic |
| Connection | Wire leads |
| Contact Configuration | N-O |
| Color | Taupe |
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.25 LBS
