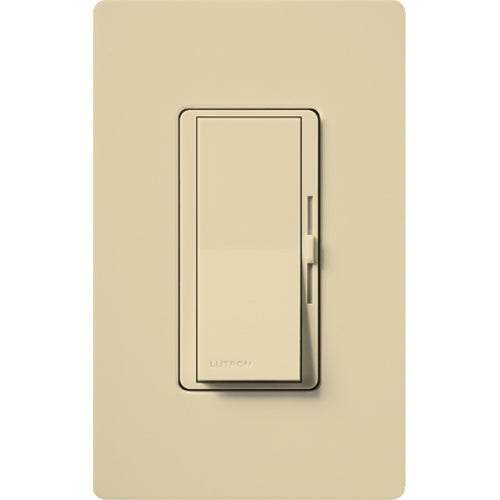

Lutron Diva Reverse-Phase (ELV) Dimmer Switch, 250W LED or 500W ELV, Single Pole/3-Way, Neutral Required, 120V, DVRP-253P-IV, Ivory
- ROCK SKU: LUT-DVRP-253P-IV
- UPC: 784276221672
- MFG Part #: DVRP-253P-IV
$142.30
$88.94
Estimated Lead Time: 2-3 weeks
Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads. Paddle turns on/off. Slide up to brighten, down to dim.
Product dimensions
-
Width:
2.25 IN
-
Height:
2.25 IN
-
Depth:
4.5 IN
-
Weight:
0.27 LBS
Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads. Paddle turns on/off. Slide up to brighten, down to dim.
- On/off paddle switch with a linear-slide dimmer for a standard designer wallplate opening.
- UL Listed to control: Dimmable LED with integrated driver; Dimmable compact fluorescent (CFL) with integrated ballast; Incandescent/Halogen; Electronic Low-Voltage (ELV) transformers
- Reverse-phase type control. Neutral wire connection is required in the wallbox.
- 100% factory tested
| Switch Type | Paddle Switch |
| Application | Lighting Control |
| Decorative Color | Ivory |
| Connection Type | Wire Leads |
| Frequency Rating, Maximum | 60 |
| Environmental Conditions | Indoor use only |
| Face Material | Metal;Plastic |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Standard | UL, CSA, NOM |
| Type | Dimmer, reverse-phase, 3-way/single-pole |
| Voltage Rating | 120 |
| Wattage | 250 W/500 W |
Product dimensions
-
Width:
2.25 IN
-
Height:
2.25 IN
-
Depth:
4.5 IN
-
Weight:
0.27 LBS
