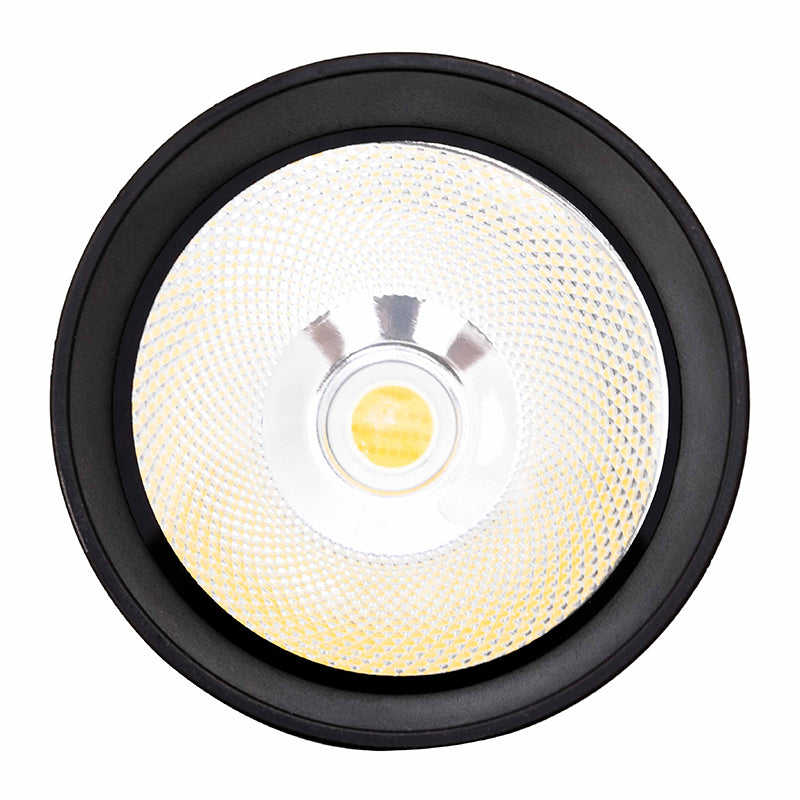

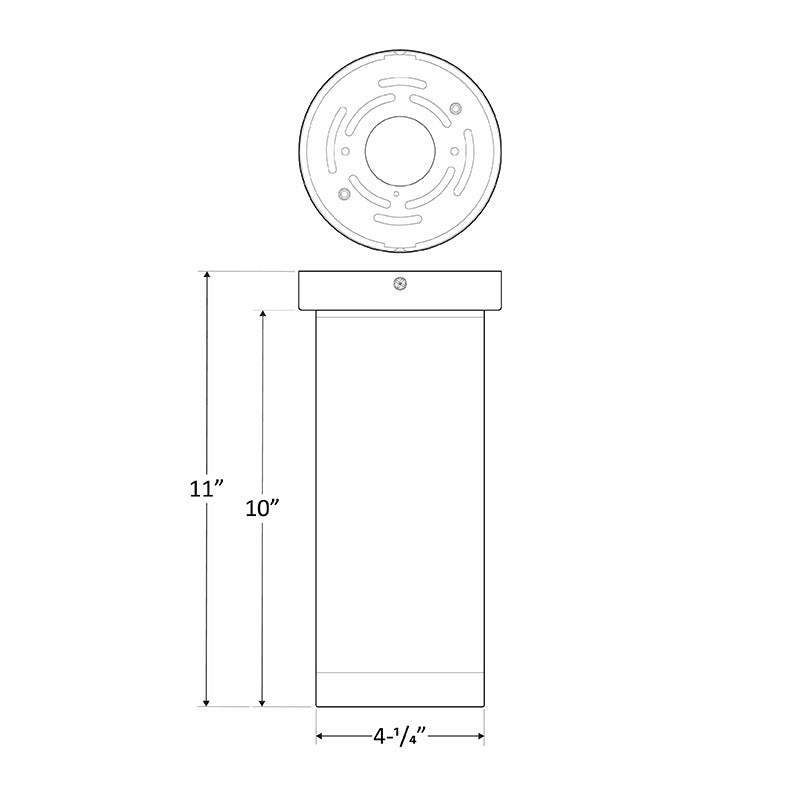

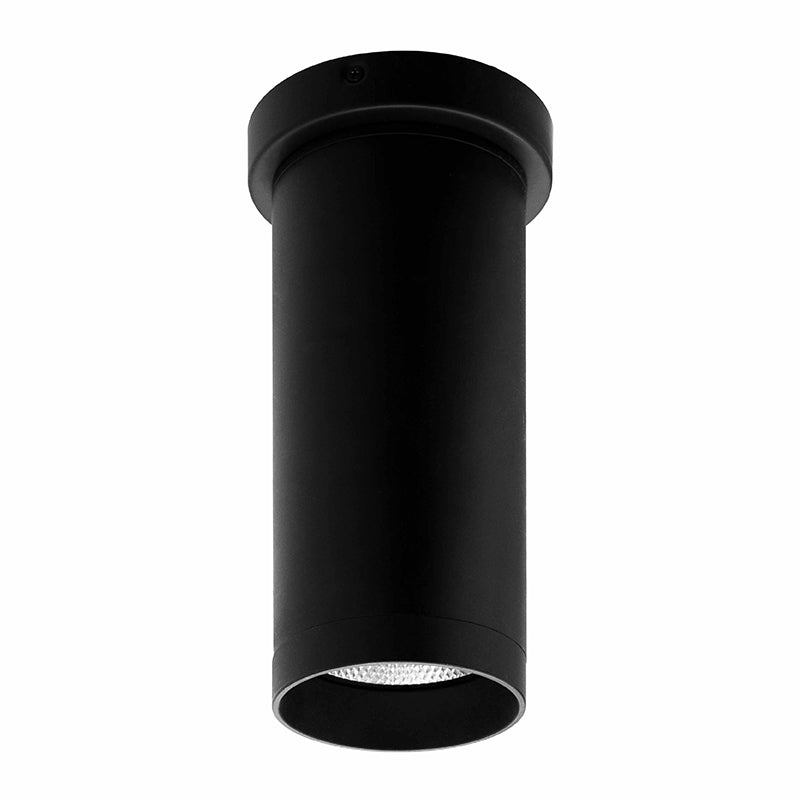

Westgate Mfg CMC4 Cylinder, 9/12/15W, CCT Selectable, TRIAC & 0-10V, Black, CMC4-MCTP-DD-BK
- ROCK SKU: WES-CMC4-MCTP-DD-BK
- UPC: 845060080056
- MFG Part #: CMC4-MCTP-DD-BK
$141.78
$125.74
The Westgate Mfg CMC4-MCTP-DD-BK is a 4-inch LED ceiling mount cylinder rated at 9/12/15W for commercial, retail, and architectural interior applications. It produces 75 lm/W with field-selectable 3000K/4000K/5000K CCT and a 40° beam angle, operating on 120–277V with both TRIAC and 0-10V dimming; clear and frosted glass lenses are included. ETL listed with 80 CRI, IP20 rating, and a 50,000-hour rated life. Black finish. 5-year warranty.
| Watts | 9/12/15W (Field-Adjustable) |
| Lumens | 675–1,125 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Voltage | 120–277V |
| Dimming | TRIAC & 0-10V |
| Beam Angle | 40° |
| Rated Life | 50,000 hours |
| IP Rating | IP20 |
| Finish | Black |
