Westgate Mfg Ceiling Mount Cylinder, 5/7/9W, CCT Selectable, TRIAC & 0-10V Dimming, Black, CMC3-MCTP-DD-BK
- ROCK SKU: WES-CMC3-MCTP-DD-BK
- UPC: 845060080032
- MFG Part #: CMC3-MCTP-DD-BK
$112.78
$99.74

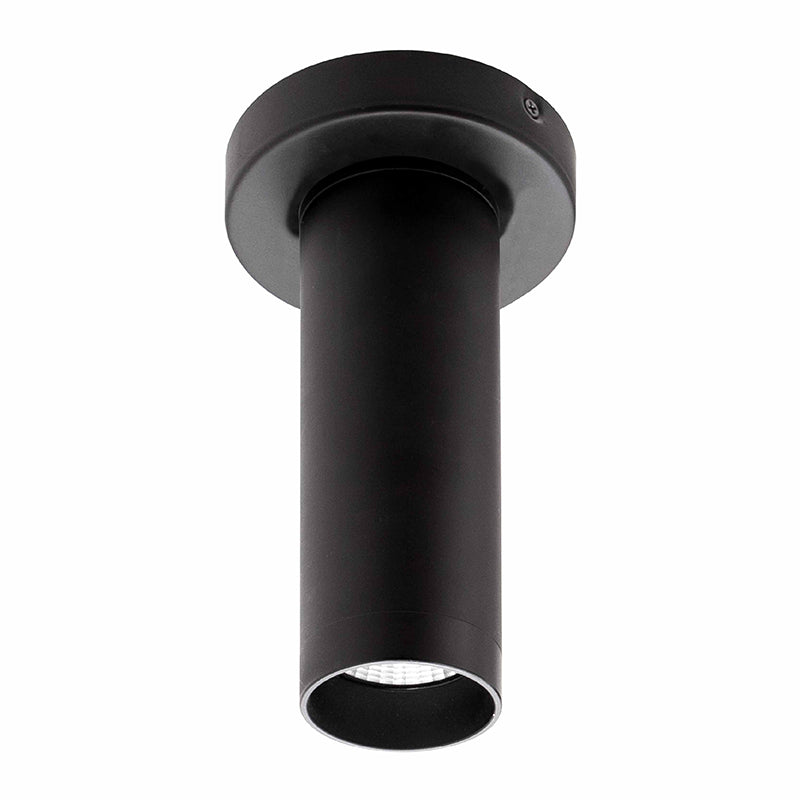

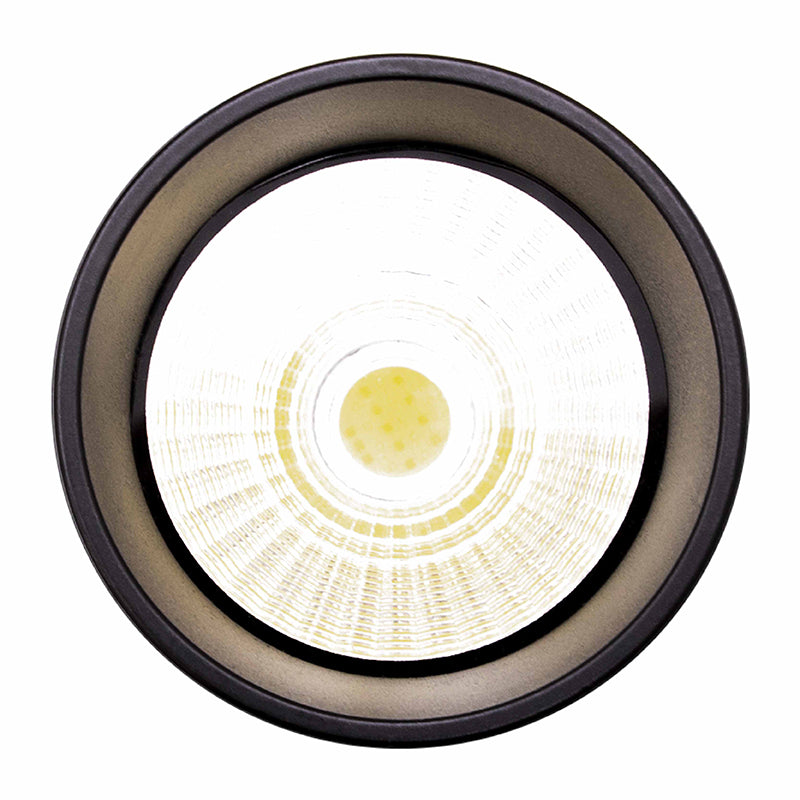

The Westgate Mfg CMC3-MCTP-DD-BK is a 3-inch surface-mount LED cylinder fixture rated at 5/7/9W with selectable CCT (3000K/4000K/5000K), suitable for commercial and residential ceiling applications requiring flexible output. It operates on 120–277V with both TRIAC and 0-10V dimming, delivers 75 lm/W efficacy at a 25° beam angle, and ships with clear and frosted glass lenses included. ETL listed, IP20 rated, CRI 80, and backed by a 5-year warranty. Black finish.
| Watts | 5/7/9W (Field-Adjustable) |
| Lumens | 375–675 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Voltage | 120-277V |
| Dimming | TRIAC & 0-10V |
| IP Rating | IP20 |
| Rated Life | 50,000 hr |
| Finish | Black |
