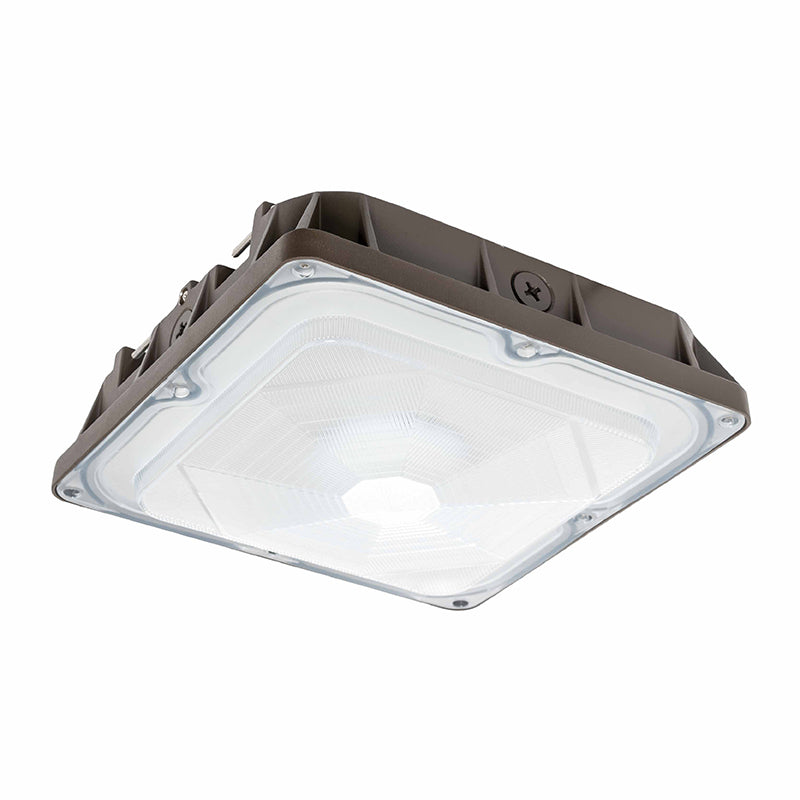

Westgate Mfg CDLX X-GEN Surface Canopy, 15/25/35/45W, 3000K, 0-10V Dimmable, IP65, Bronze, CDLX-MD-15-45W-30K
- ROCK SKU: WES-CDLX-MD-15-45W-30K
- UPC: 845060088915
- MFG Part #: CDLX-MD-15-45W-30K
$120.78
$106.74
The Westgate Mfg CDLX-MD-15-45W-30K is a 15/25/35/45W adjustable LED surface canopy in the X-GEN CDLX medium-housing series, designed for covered walkways, fuel canopies, and building soffit mounting. Producing 120 lm/W at 3000K with a 140×140° beam distribution, it supports 0–10V dimming across 120–277V for versatile control integration. UL listed and DLC Premium qualified with an IP65 rating, 50,000-hour rated life, and a 7-year warranty; die-cast bronze aluminum construction rated to –40°F.
| Watts | 15/25/35/45W (Field-Adjustable) |
| Lumens | 1,800–5,400 lm |
| Color Temperature | 3000K |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Rated Life | 50,000 hours |
| Certifications | UL, DLC Premium |
| Finish | Bronze |
| Warranty | 7 years |
