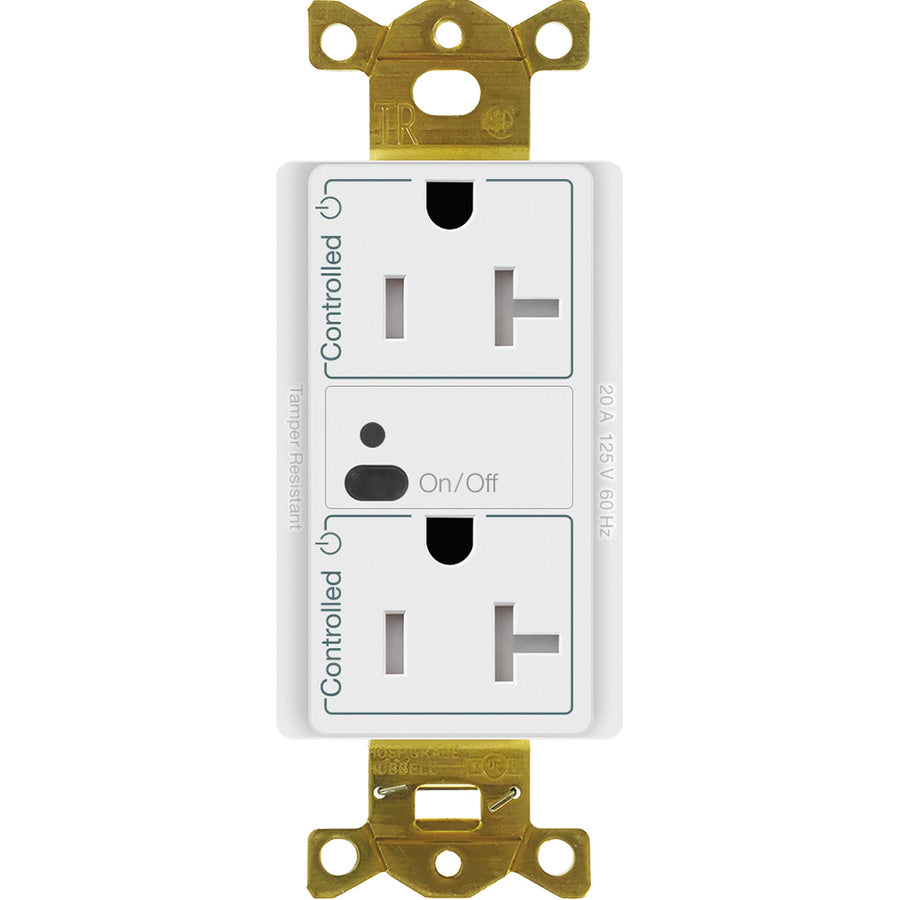

Lutron Vive Wireless Receptacle, 20 A Duplex, White, CAR2S-20-DTR-WH
- ROCK SKU: LUT-CAR2S-20-DTR-WH
- UPC: 784276221948
- MFG Part #: CAR2S-20-DTR-WH
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.5 IN
-
Height:
2.5 IN
-
Depth:
4.5 IN
-
Weight:
0.33 LBS
Dual switching. Utilizes Clear connect RF technology to communicate wirelessly to Pico wireless controls and Radio powr Savr occupancy/vacancy sensors. Capable of switching general purpose loads and downstream receptacles. 434 MHz
- Compatible with the Vive wireless hub which enables a simple setup process using a standard web browser on any Wi-Fi enabled phone, tablet, or computer. The hub enables control and monitoring of all Vive devices and can be added any time.
- Utilizes Lutron Clear Connect RF Technology
- Receives wireless inputs from up to 10 Pico wireless controls and 10 Radio Powr Savr occupancy / vacancy sensors
- Capable of switching general-purpose loads
- Capable of switching downstream receptacles
- Adaptive Switching: maximizes relay life by switching at the point of minimum energy on the AC power curve
- Tamper resistant
- RoHS Compliant
- Includes required controlled outlet labels for code compliance
- Includes plastic screw terminal covers
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| Family Color | White |
| Connection | Screw terminal |
| Mounting | Wallbox |
| Number of Wires | 3,4,5 |
| Standard | cULus, FCC NOM, IFT |
| Wire Size | 12 to 14 |
| Voltage Rating | 120 |
| Type | Wireless duplex receptacle |
| Temperature Rating, Maximum | 122 |
| Amperage Rating | 20;20.0000 |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
| Wattage | 1500 W |
Product dimensions
-
Width:
2.5 IN
-
Height:
2.5 IN
-
Depth:
4.5 IN
-
Weight:
0.33 LBS
