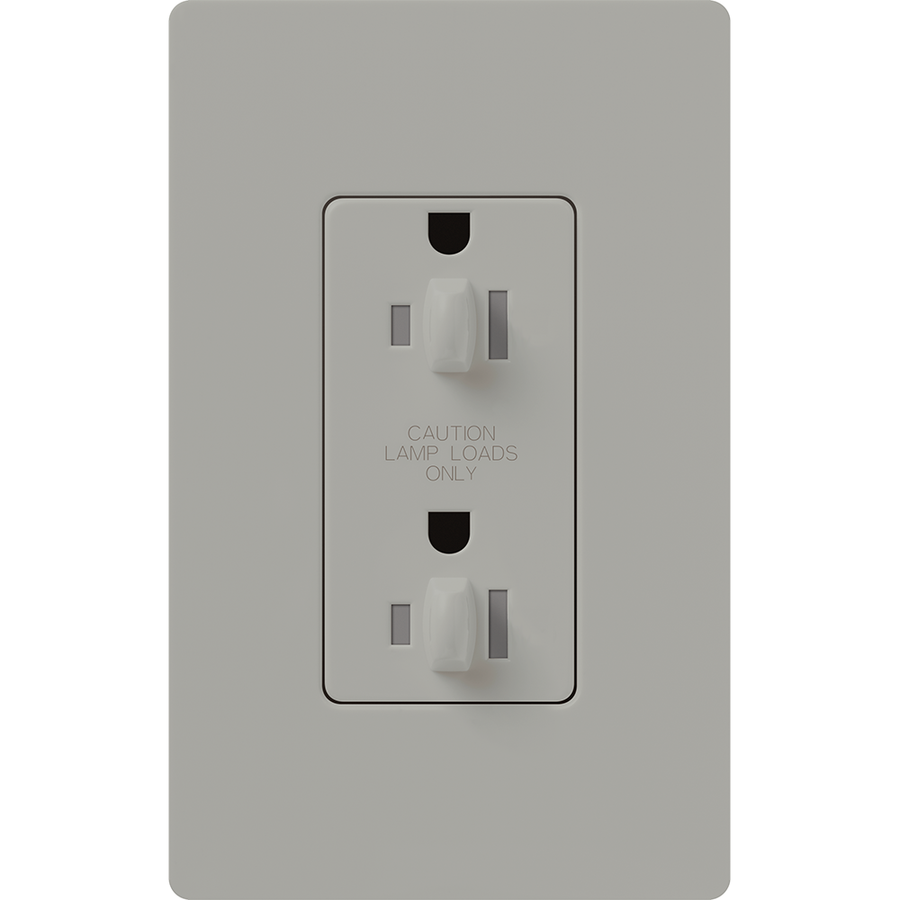

Lutron Claro 15A Dual Dimming, Tamper Resistant Duplex Receptacle, Decorator-Style Outlet, Gloss Finish, CAR-15-DDTR-GR, Gray
- ROCK SKU: LUT-CAR-15-DDTR-GR
- UPC: 027557779005
- MFG Part #: CAR-15-DDTR-GR
$22.45
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
4.5 IN
-
Depth:
2.3 IN
-
Weight:
0.25 LBS
Claro
- Gloss
- Dual dimming
- tamper resistant receptacle
- 15A/125V in gray
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
| Application | Lighting Control |
| Standard | UL, CSA, NOM |
| Temperature Rating, Maximum | 104.000000000000000 |
| Voltage Rating | 125 |
| Type | Receptacle for dimming use |
| Wire Size | 10 to 14 |
| NEMA Rating | 5-15R |
| Mounting | Wallbox |
| Number of Wires | 3,4,5 |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| Connection | Screw terminal |
| Family Color | Gray |
| Amperage Rating | 15;15.0000 |
| Wattage | 1875;1875.0000 |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
