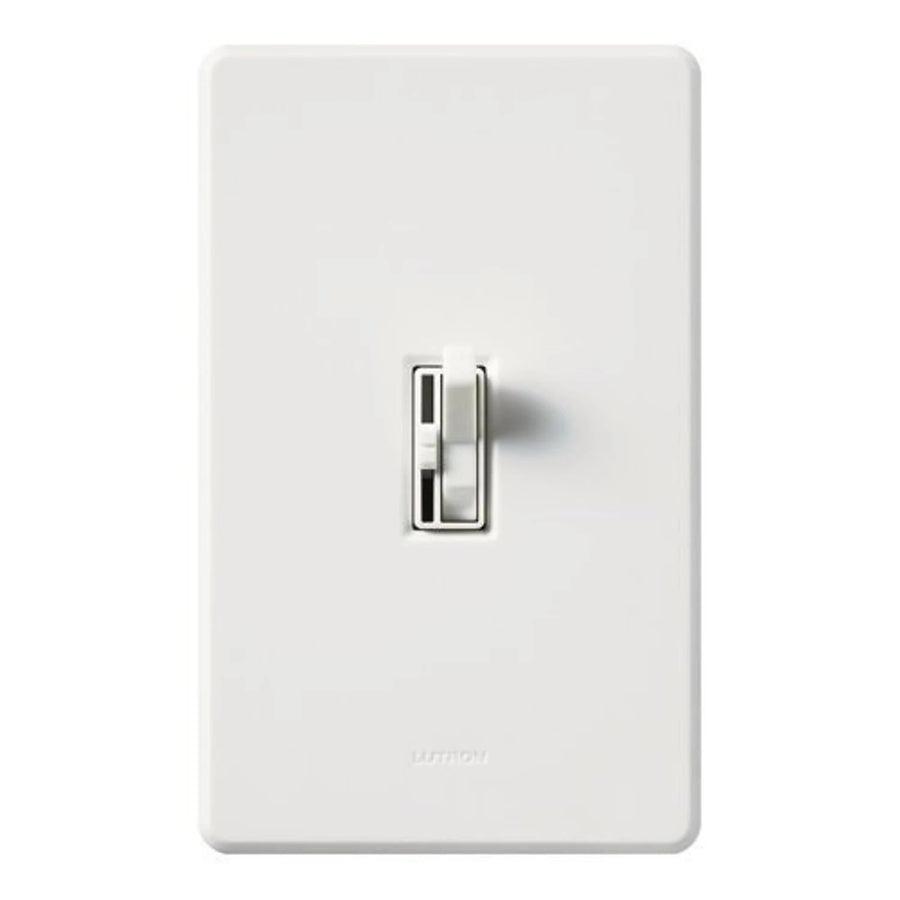

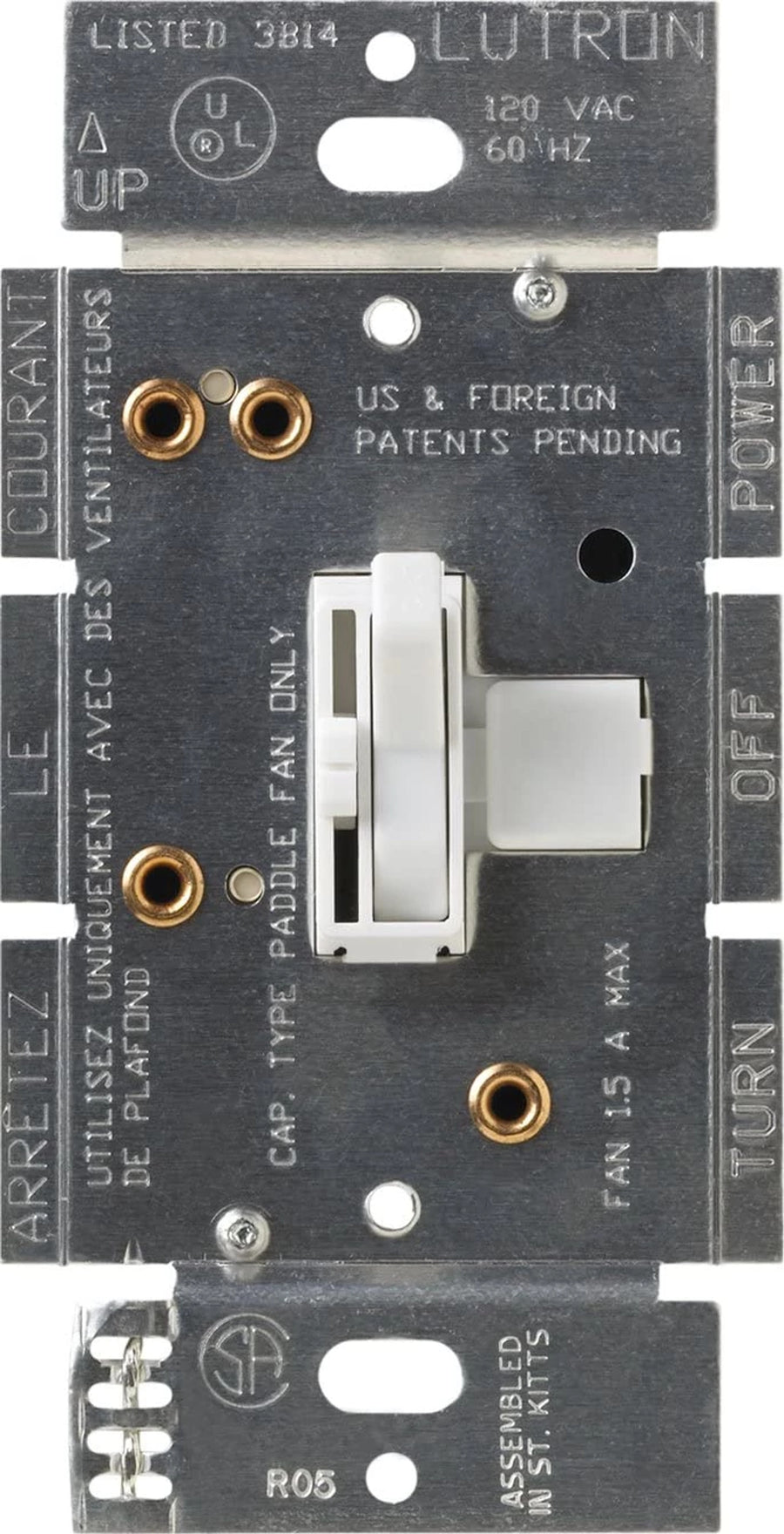

Lutron Ariadni Quiet Fan-Speed Control, No Neutral Required, 1.5A 3-Speed Fan, 120V, Single Pole/3-Way, AYFSQ-F-WH, White
- ROCK SKU: LUT-AYFSQ-F-WH
- UPC: 027557706476
- MFG Part #: AYFSQ-F-WH
$35.42
$22.14
Estimated Lead Time: 2-3 weeks
Lutron Ariadni fan controls are designed to replace or match your traditional toggle style switches. This control can be used to operate a single 3-speed ceiling fan. This fan control features a smooth, linear slider to adjust the fan’s speed and a toggle switch that turns the fan ON/OFF. Use the slider to select between 3-speeds (Low/Med/High) for a favorite preset level. The Ariadni fan control fits into a traditional wall plate opening and can also work with your existing multi-gang wall plates. Available in 6 gloss colors. Pairs perfectly with Lutron Fassada wall plates for consistent color matching (sold separately).
Product dimensions
-
Width:
2.4 IN
-
Height:
2.4 IN
-
Depth:
4.5 IN
-
Weight:
0.25 LBS
Controls 1.5 A fan. Toggle turns fan on/off. Slide up to increase speed, down to decrease. 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan).
- Includes (1) Lutron Ariadni 3-Speed Fan Control; Gloss Finish
- Rated for 1.5A 3-speed Ceiling Paddle Fans
- For use with (1) ceiling paddle fan per control; not compatible with fans with proprietary remotes
- No Neutral Required; 120V
- Single Pole or 3-Way compatible
- Wire lead installation
- Toggle turns fan ON/OFF
- Slider adjusts preset fan speeds; Low, Medium, High
- Available in 6 gloss colors
- Pairs perfectly with Lutron Fassada wall plates for consistent color matching (wall plates are sold separately)
| Standard | UL, cUL |
| Type | Fan Control, 3-way/single-pole |
| Voltage Rating | 120 |
| Color | White |
| Mounting | Wallbox |
| Contact Configuration | N-O |
| Actuator | Toggle switch |
| Enclosure | Plastic |
| Connection | Wire leads |
| Application | Fan Control |
| Wattage | 180 W |
| Amperage Rating | 1.5 |
| Contact Rating | 1.5 |
