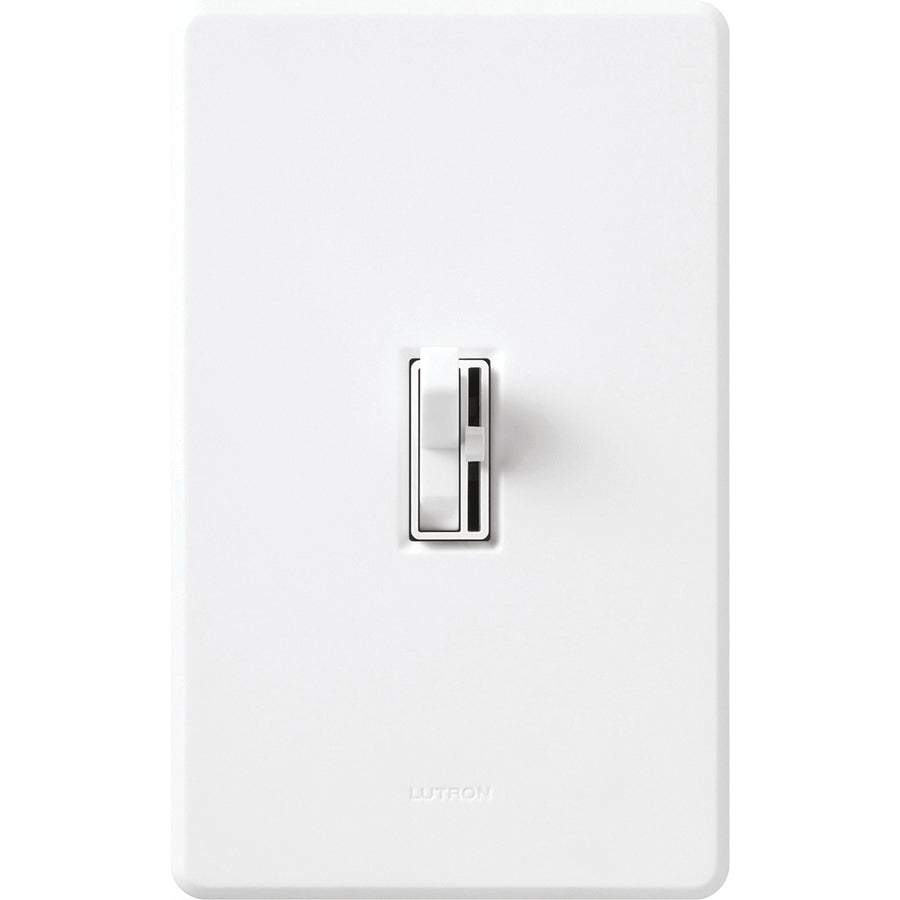

Lutron Ariadni 3-Wire Dimmer for Ballasts/LED Drivers, 1000W/8A, Single Pole/3-Way. Neutral Required, 120V, AYF-103P-WH, White
- ROCK SKU: LUT-AYF-103P-WH
- UPC: 027557689922
- MFG Part #: AYF-103P-WH
$109.20
$68.25
Estimated Lead Time: 2-3 weeks
SKU:AYF-103P-WH
UPC: 027557689922
UPC: 027557689922
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.25 LBS
Controls 8 A 3-wire LED driver/fluorescent ballast loads. Toggle turn lights on/off. Slide up to brighten, down to dim.
- Matches existing switches
- Toggle-style switch turns light on to level set by slider
- Slide adjusts light to your favorite level
- eco-dim model available
- 1000 W preset dimmers have voltage compensation which maintains stable light levels, despite line voltage variations
- Coordinating Fassada and Stainless Steel wallplates only available separately
- 100% factory tested
| Family Color | White |
| Operating Temperature, Maximum | 104 °F |
| Standard | UL, cUL |
| Operating Temperature, Minimum | 32 °F |
| Connection Type | Wire Leads |
| Type | Preset dimmer, 3-way/single-pole |
| Frequency Rating, Minimum | 50 |
| Voltage Rating | 120 |
| Application | Lighting Control |
| Environmental Conditions | Indoor use only |
| Face Material | Metal;Plastic |
| Switch Type | Toggle |
| Amperage Rating | 8;8.0000 |
| Wattage | 960 W |
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.25 LBS
