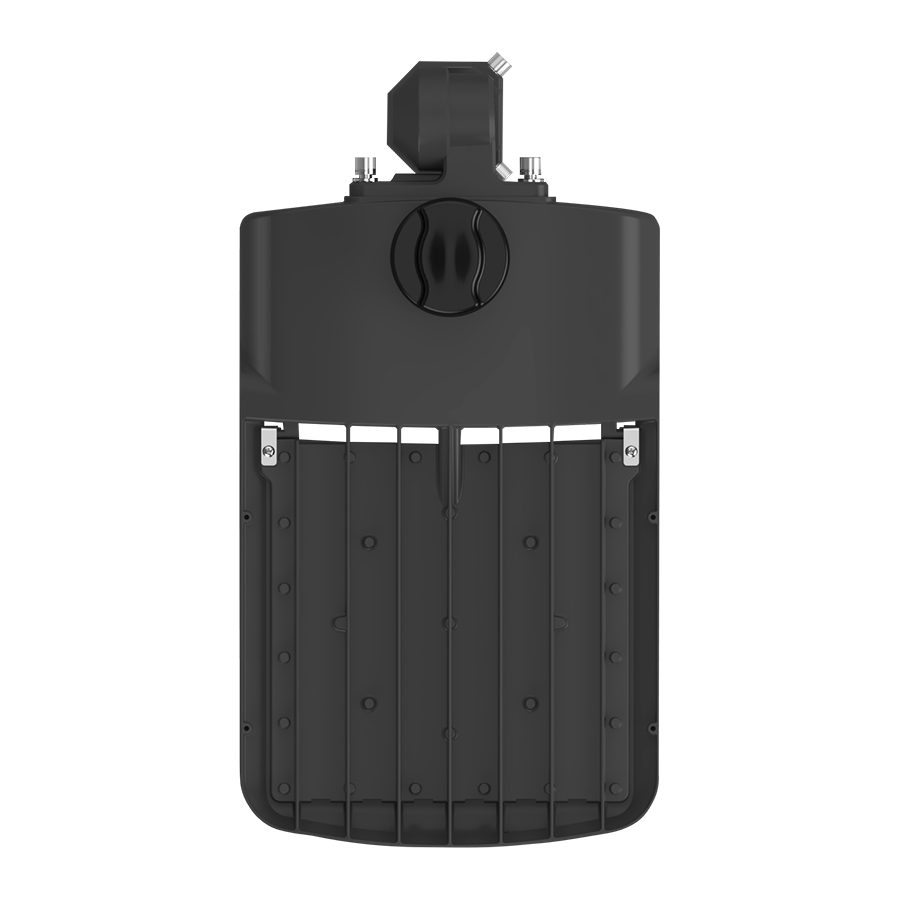

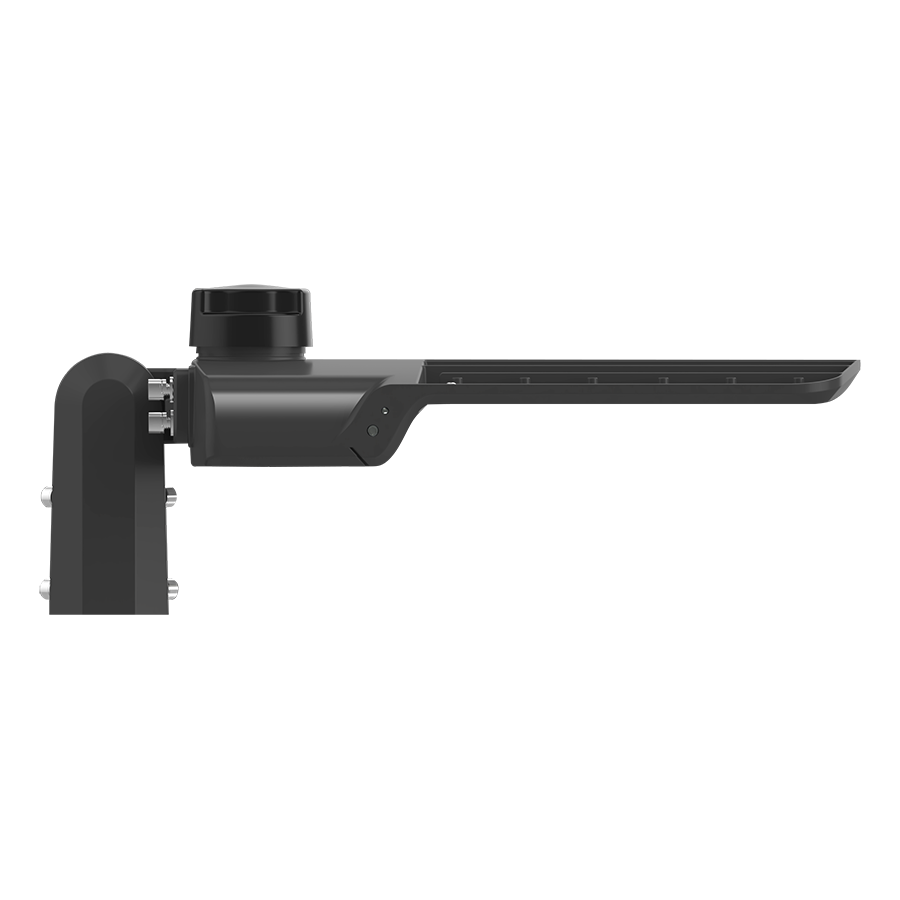

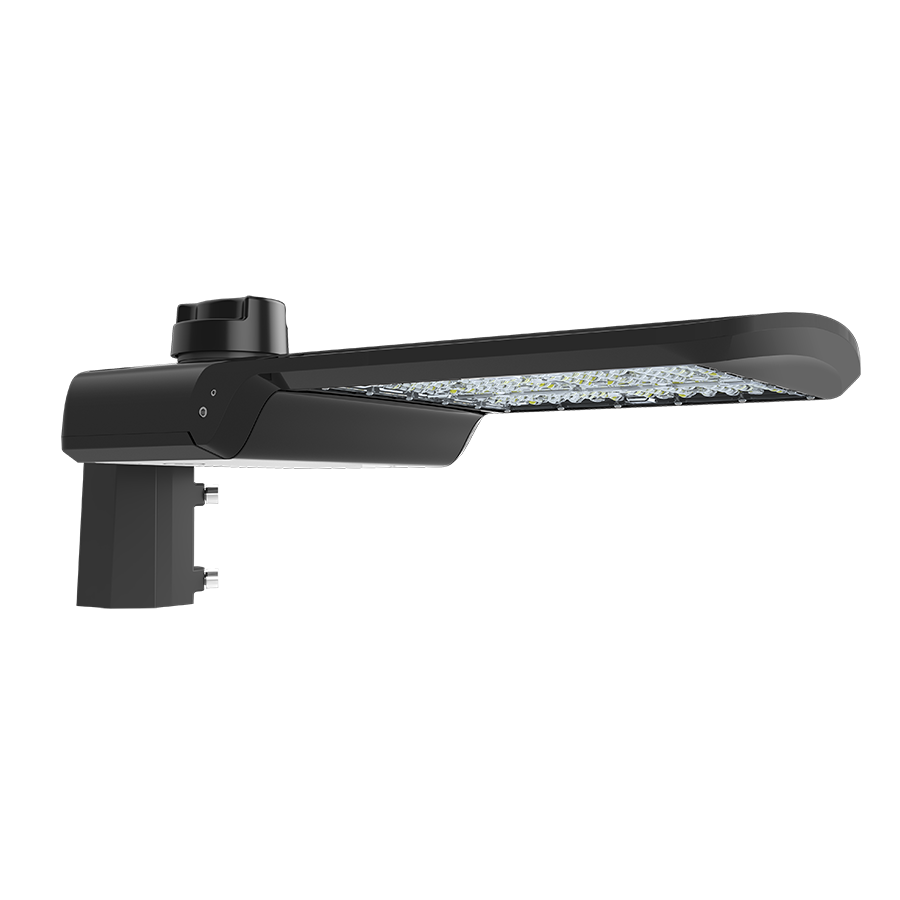

RAB Lighting A17 IV Area Light, 150/120/100W, CCT Selectable, 480V, Slipfitter, 7-Pin, Bronze, A17-4T150SF/480/7PRS
- ROCK SKU: RAB-A17-4T150SF/480/7PRS
- UPC:
- MFG Part #: A17-4T150SF/480/7PRS
The RAB Lighting A17-4T150SF/480/7PRS is a 150/120/100W LED area light from the A17 IV series, combining a slipfitter mount with 480V input and a 7-pin shorting cap receptacle for NEMA-compatible wireless control or photocell integration on tenon-top poles. Output ranges from 14,999 to 22,736 lumens with field-selectable CCT (3000K/4000K/5000K) and up to 158.1 lm/W efficacy. Rated DLC Premium with a 100,000-hour lamp life; bronze finish.
| Watts | 150/120/100W (Field-Adjustable) |
| Lumens | 14,999–22,736 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Efficacy | 139.2–158.1 lm/W |
| Rated Life | 100,000 hours |
| Finish | Bronze |
| Mounting | Slipfitter, 7-Pin Receptacle |
| DLC Certification | DLC Premium |
