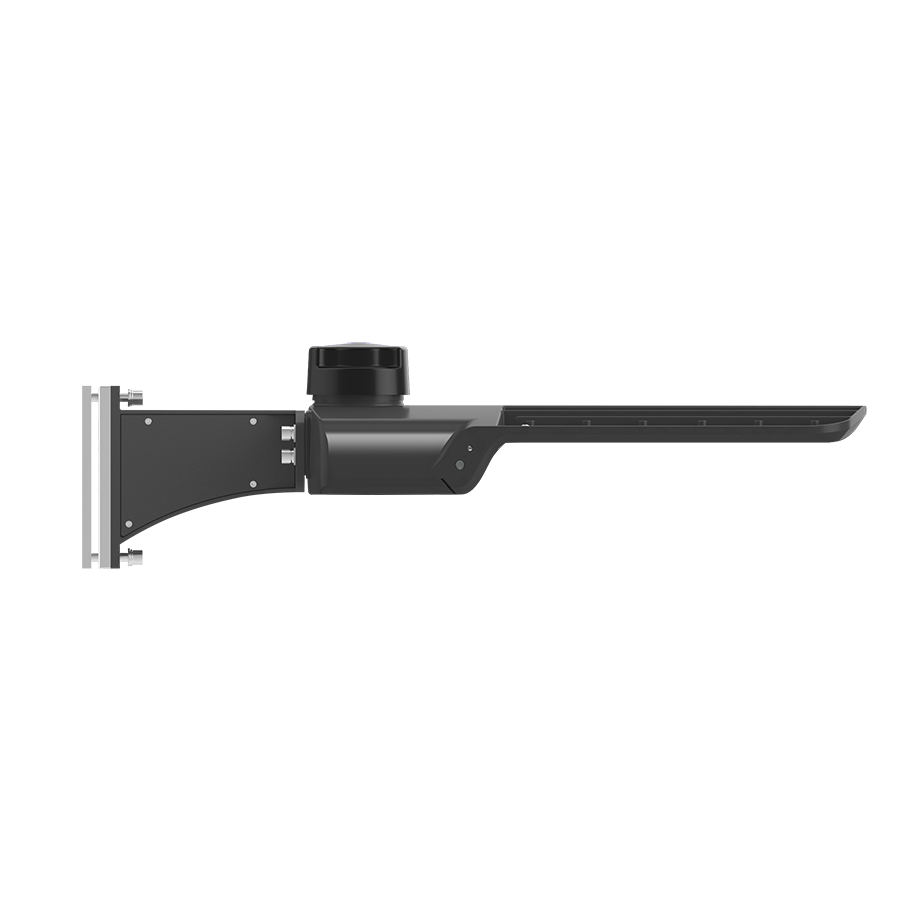

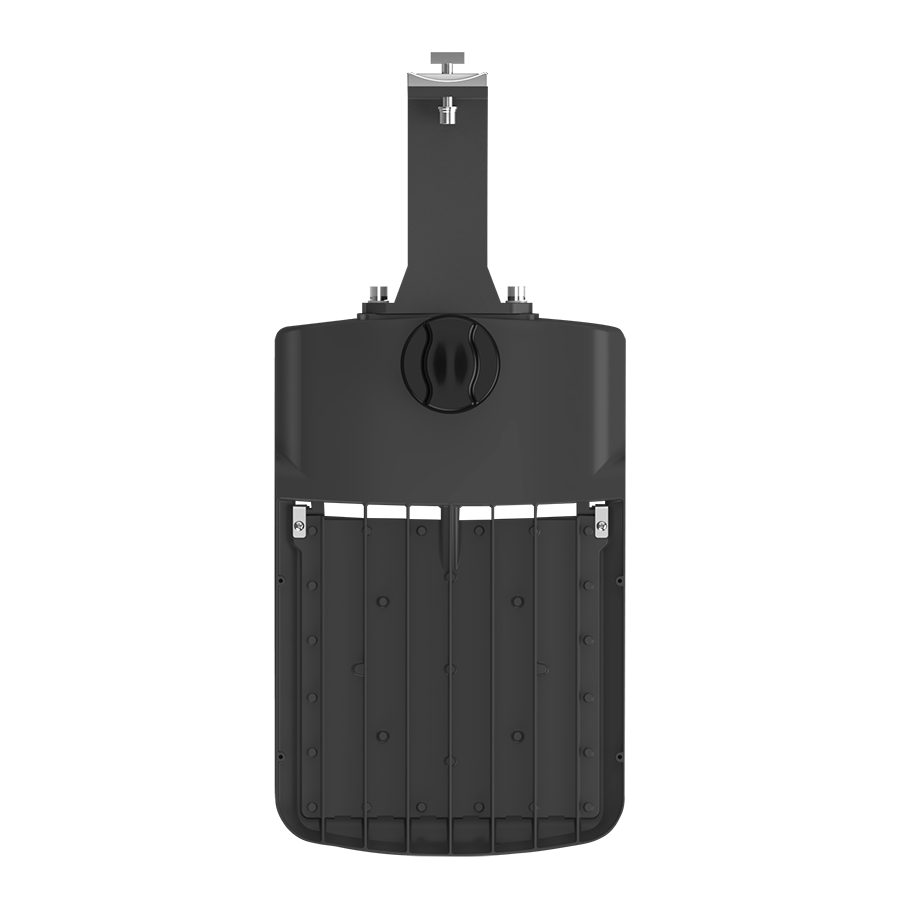

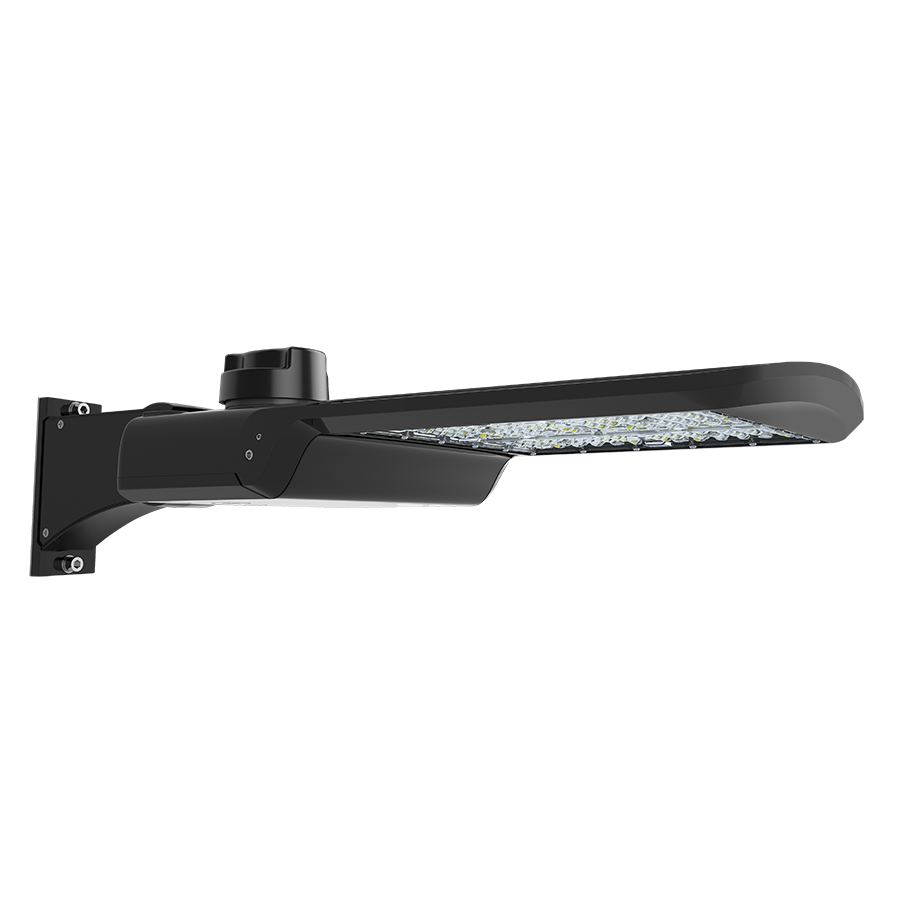

RAB Lighting A17 IV Area Light, 100/80/60W, CCT Selectable, 480V, 7-Pin Receptacle, Bronze, A17-4T100/480/7PRS
- ROCK SKU: RAB-A17-4T100/480/7PRS
- UPC:
- MFG Part #: A17-4T100/480/7PRS
The RAB Lighting A17-4T100/480/7PRS is a 100/80/60W LED area light designed for pole-mounted outdoor applications including parking lots, campuses, and roadways on 480V systems with a 7-pin receptacle for photocell or wireless control compatibility. CCT is field-selectable among 3000K, 4000K, and 5000K, delivering up to 15,207 lumens at up to 162.6 LPW efficacy with a 100,000-hour rated life. DLC Premium listed under both Architectural Flood/Spot and Outdoor Pole/Arm-Mounted Area and Roadway categories. Bronze finish.
| Watts | 100/80/60W (Field-Adjustable) |
| Lumens | 9,210–15,207 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Rated Life | 100,000 hours |
| DLC Certification | DLC Premium |
| Finish | Bronze |
| Mount Type | 7-Pin Receptacle |
