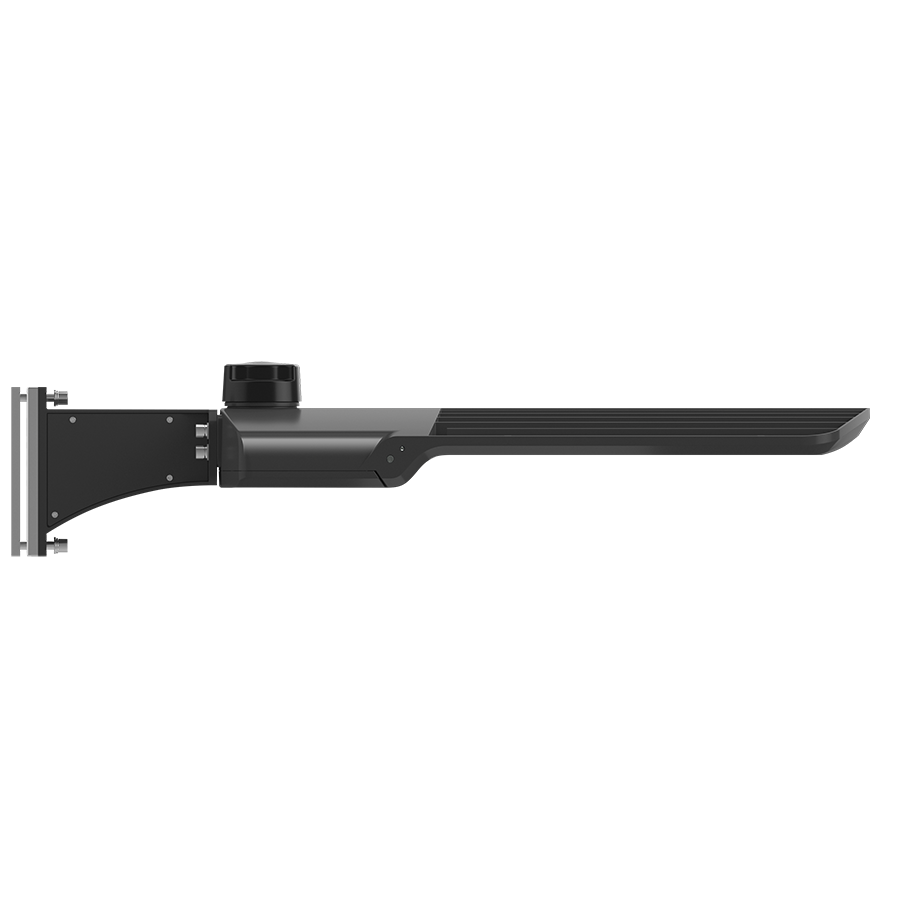

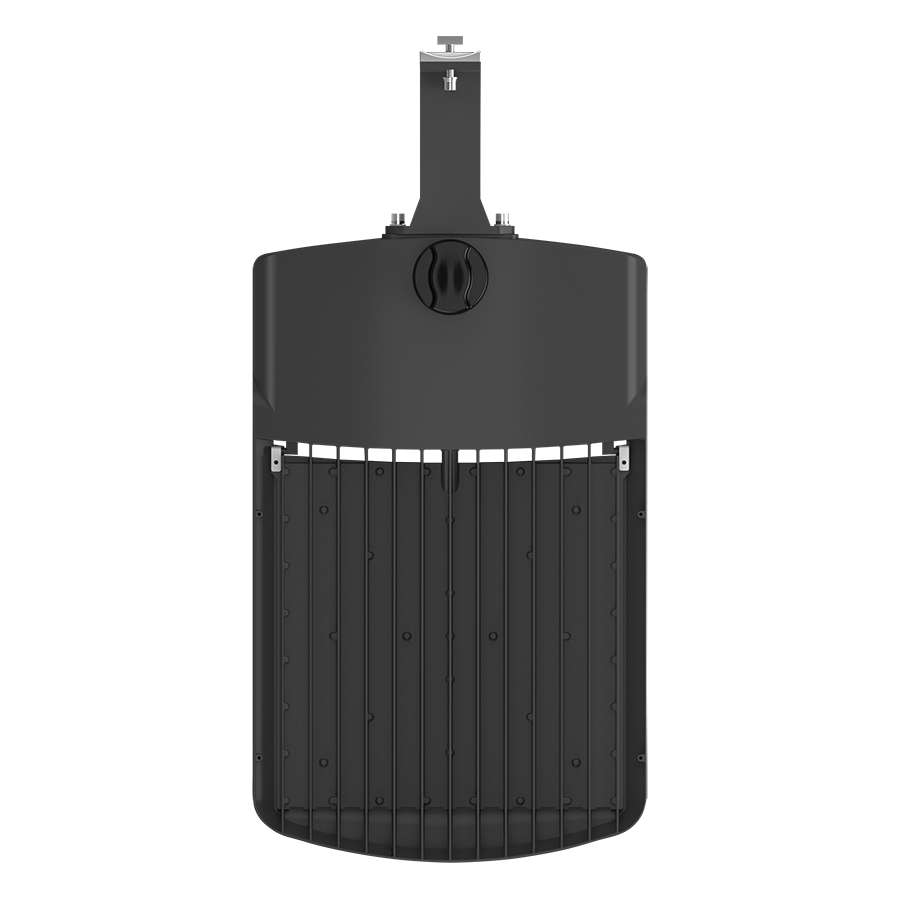

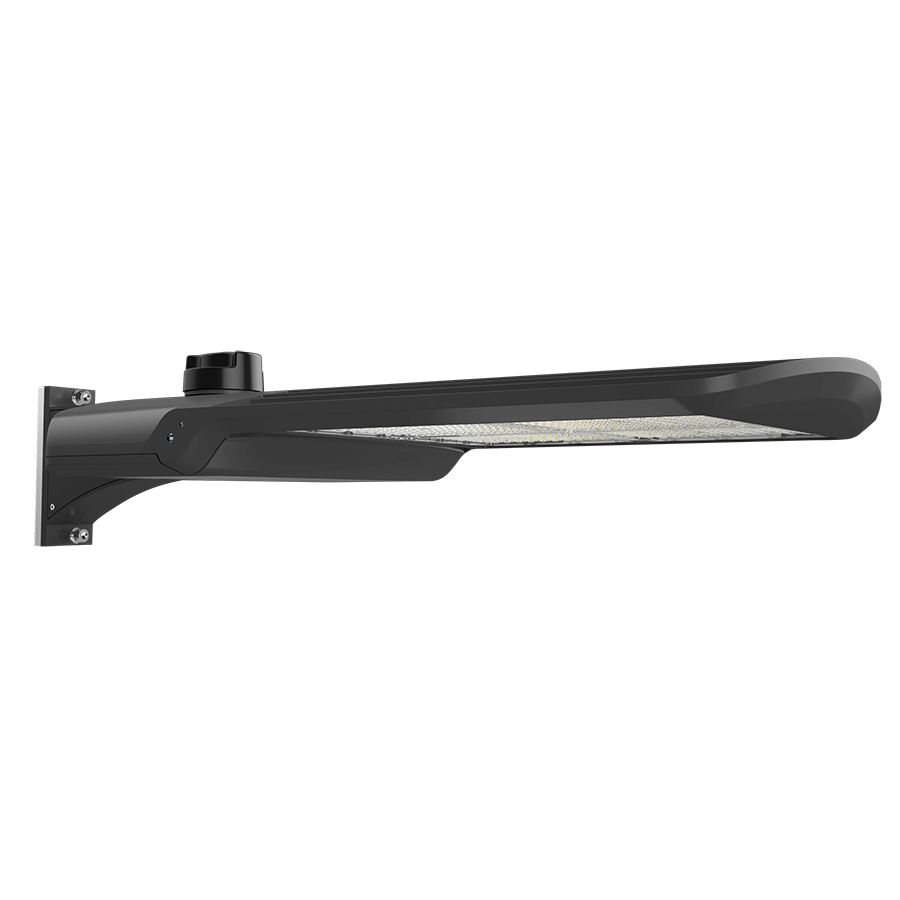

RAB Lighting A17 III Area Light, 480/400/320W, CCT Selectable, 120-277V, 3-Pin Receptacle, Bronze, A17-3T480/3PRS
- ROCK SKU: RAB-A17-3T480/3PRS
- UPC:
- MFG Part #: A17-3T480/3PRS
The RAB Lighting A17-3T480/3PRS is a 480/400/320W LED A17 III area light for high-output pole-mount applications on 120–277V systems, equipped with a 3-pin NEMA receptacle for photocell or wireless controls. Delivering up to 76,317 lumens with field-selectable 3000K/4000K/5000K CCT and three-step wattage reduction at efficacy up to 175.9 lm/W, it serves large parking structures, roadways, and athletic facilities. DLC Premium listed under Outdoor Pole/Arm-Mounted Area and Roadway Luminaires and Architectural Flood and Spot Luminaires; 100,000-hour rated life. Bronze finish.
| Watts | 480/400/320W (Field-Adjustable) |
| Lumens | 51,933–76,317 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120-277V |
| Rated Life | 100,000 hours |
| Efficacy | 146–175.9 lm/W |
| DLC Certification | DLC Premium |
| Finish | Bronze |
