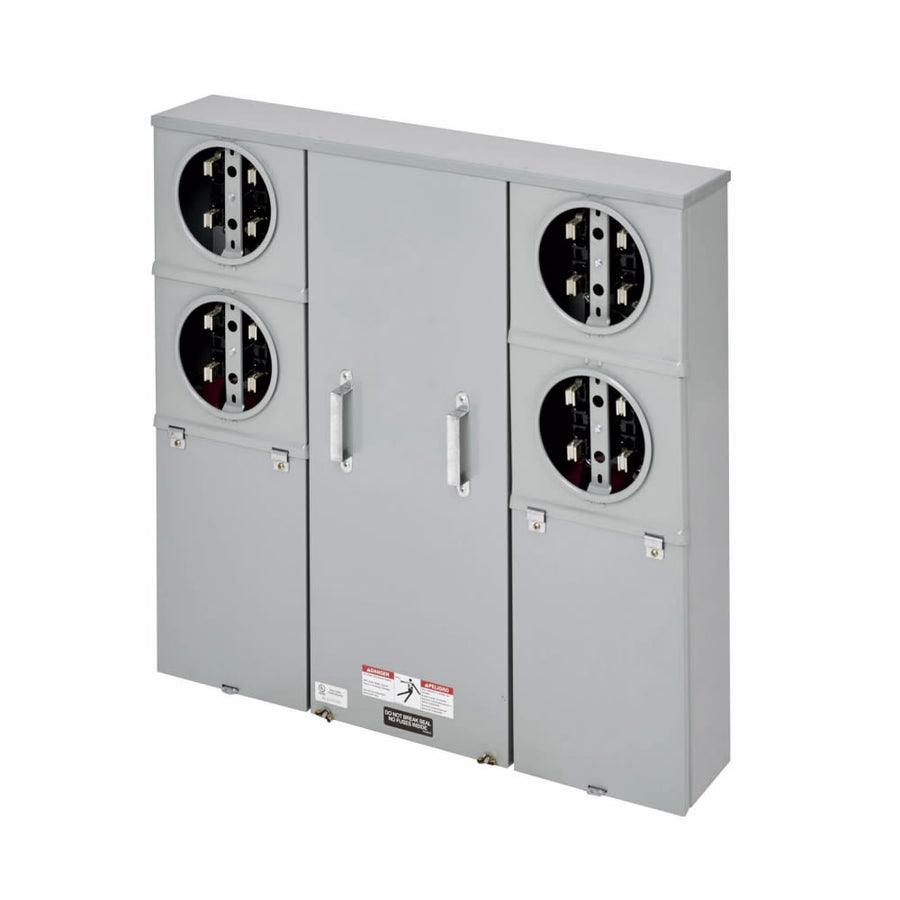

Eaton B-Line NEC 2020, EUSERC, 4 Position Vertical Meter Pack, 100 Amp Unit Meter, 225 Amps Buss, Ring type, 3R, Underground Only, Surface Mount, 2014
- ROCK SKU: EAT-2014
- UPC: 782051641158
- MFG Part #: 2014
$2,400.30
Product dimensions
-
Width:
6 IN
-
Height:
32 IN
-
Depth:
34 IN
-
Weight:
89 LBS
Eaton B-Line NEC 2020; EUSERC; 4 Position Vertical Meter Pack; 100 Amp Unit Meter; 225 Amps Buss; Ring type; 3R; Underground Only; Surface Mount; 2014
| Number of Positions: | 4 |
| Amperage: | 100A Cont. (Bus Amp - 400A Max) |
| Voltage: | 120/240 V |
| Phase: | 1Ø3W |
| Material: | 16GA Galvanized Steel |
| Cover Type: | Ring Type |
| Feed Type: | Underground |
| ANSI Coating: | Painted (Standard ANSI 61) |
| Number of jaws: | 4 |
| Bypass: | No Bypass |
| NEMA: | 3R |
| Listings: | UL 67 |
| EUSERC: | 342 |
| ANSI: | Compless to C12.7 |
Product dimensions
-
Width:
6 IN
-
Height:
32 IN
-
Depth:
34 IN
-
Weight:
89 LBS
