What Is 0–10V Dimming? (And How It Differs from ELV, MLV & Phase/TRIAC)

If you spec or install commercial lighting, you have run into "0–10V" on a driver cut sheet. It is one of the most common dimming methods in commercial LED and fluorescent systems, but it works in a fundamentally different way than the phase-control dimmers most people know from residential work.

This guide explains what 0–10V dimming is, how the wiring and signal actually work, and how it compares to ELV, MLV, and TRIAC (phase-control) dimming so you can match the right control to the right fixture.

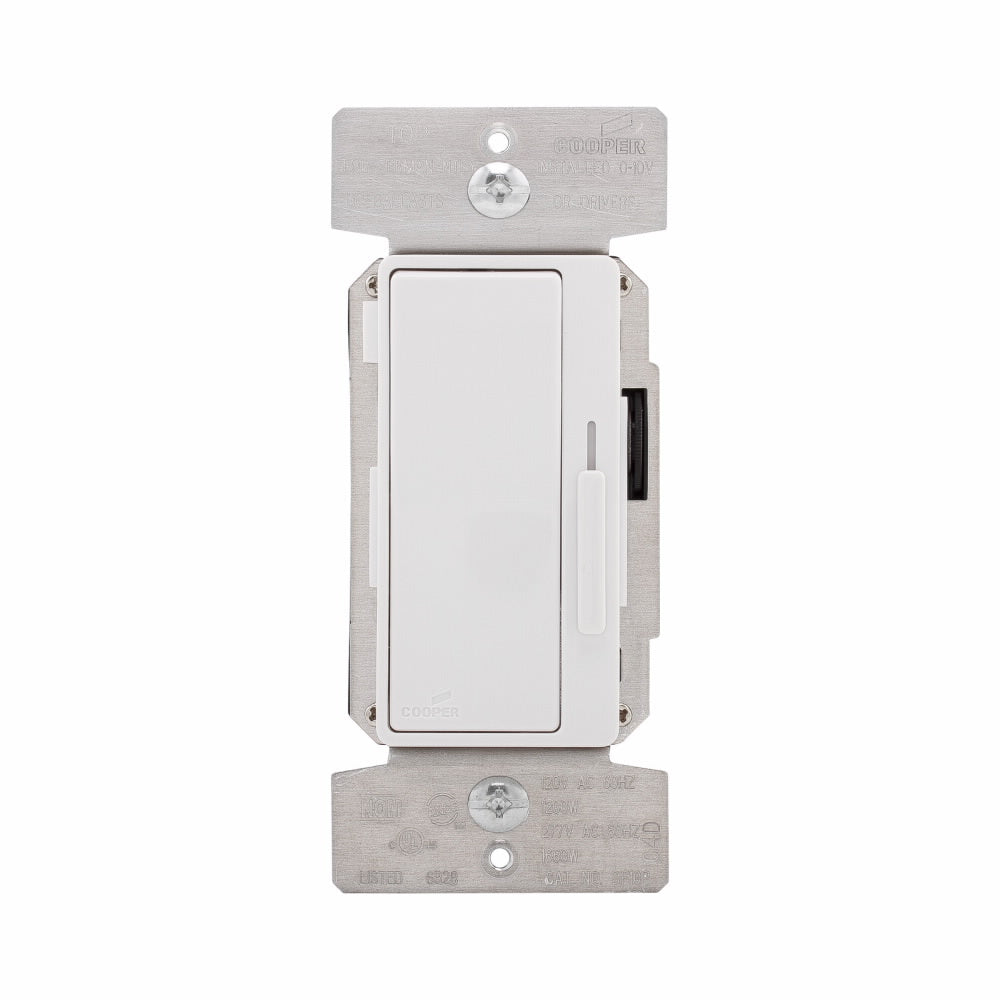

What Is 0–10V Dimming?

0–10V dimming is an analog, low-voltage control protocol. A separate control signal — a DC voltage somewhere between 0 and 10 volts — tells the LED driver or fluorescent ballast how bright to run.

The key idea: the dimming happens on a dedicated pair of low-voltage control wires, not on the line-voltage power feeding the fixture. The fixture still gets full, constant line voltage; the 0–10V signal just instructs the driver how much of that power to deliver to the light.

The relationship is straightforward:

• 10V (or above) = full / 100% output
• As the control voltage drops, the light dims down
• Around 1V = the driver's minimum rated light level
• 0V = off (or minimum, depending on the driver)

This 1V-to-10V behavior follows the long-standing IEC 60929 Annex E convention used by most commercial 0–10V fluorescent and LED drivers.

Note on minimum dim level: "1% dimming" is a marketing/spec term for how low a specific driver can go before it shuts off or flickers. The 0–10V signal itself just defines the curve — the actual low-end performance depends on the driver and the control being compatible. Always check both spec sheets.

How 0–10V Dimming Works (Wiring & Signal)

A 0–10V install has two separate wiring jobs:

1. Line-voltage power (typically 120V or 277V in commercial work) feeds the driver/fixture as normal.
2. A separate low-voltage control pair carries the 0–10V dimming signal between the control and the driver.

In newer products these control wires are commonly purple (+) and pink (–); older devices may use purple/gray. Always confirm polarity against the device documentation — the 0–10V signal is DC and polarity-sensitive.

For multiple fixtures, the control wires are run in parallel so one control can dim a group of drivers together.

Current sinking vs. current sourcing

This is the part that trips people up. There are two flavors of 0–10V, and they are not freely interchangeable:

• Current sinking (the common commercial setup): The LED driver supplies the 0–10V on the control wires. The control device acts like a variable resistor that "sinks" current to pull the voltage down and dim the light. This is the dominant approach for commercial LED/fluorescent dimming (the IEC 60929 Annex E style).
• Current sourcing: The control device generates and sends the 0–10V signal to the driver. This is more common in some theatrical and architectural control systems.

Practically: a sinking control has a limited capacity (how many driver inputs it can pull down), so there is a maximum number of drivers one control can handle. Some modern modules auto-detect and can source or sink — but you should never assume. Match the control type to the driver, and respect the driver-count limit on the control.

Because 0–10V drivers need a compatible 0–10V control to function as a dimmer, the control and the drivers must be specified as a system, not mixed blindly.

0–10V vs. Phase Dimming (TRIAC / ELV / MLV)

Phase-control dimming is the other big family — and it works on a completely different principle. Instead of a separate control wire, phase dimmers chop the line-voltage AC waveform itself. They cut out part of each AC cycle; less waveform delivered = dimmer light. There is no separate control pair.

Phase dimming splits into two main types:

Forward phase (leading edge) — TRIAC / MLV

• Cuts the front (leading edge) of each AC half-cycle.
• This is classic TRIAC dimming — the kind in most older residential dimmers, originally designed for incandescent and halogen.
• It is also the method used for MLV — Magnetic Low Voltage — loads. MLV fixtures use a magnetic (inductive) transformer to step line voltage down to low voltage (e.g., for certain halogen or LED low-voltage fixtures). Magnetic transformers want forward-phase/leading-edge dimmers.

Reverse phase (trailing edge) — ELV

• Cuts the back (trailing edge) of each AC half-cycle.
• This is ELV — Electronic Low Voltage — dimming, used with electronic (capacitive) transformers and often preferred for smoother, quieter dimming of sensitive electronic loads.

Why MLV vs. ELV matters: the transformer type dictates the dimmer. Putting a reverse-phase (ELV) dimmer on an MLV magnetic load can cause a voltage spike as the inductive field collapses — which can damage the dimmer and the load. This is why dimmer compatibility lists exist. Match the dimmer's phase type to the transformer/load type.

The core difference, summarized

When to Use Which

General guidance (always confirm against the actual fixture and driver specs):

• Commercial new construction / retrofits, fluorescent or LED troffers, high-bays, panels: 0–10V is the workhorse. It scales to many fixtures, integrates with occupancy/daylight sensors, and is widely supported by commercial drivers.
• Residential and light-commercial line-voltage LED lamps / fixtures: phase dimming (forward or reverse) on a compatible dimmer is usually simpler — no extra control wire to run.
• Low-voltage fixtures with a transformer: identify whether the transformer is magnetic (MLV → forward phase) or electronic (ELV → reverse phase) and pick the matching dimmer.
• Theatrical / specialty architectural control: confirm whether the system expects sourcing vs. sinking 0–10V.

The single most common mistake is mixing incompatible types — a sourcing control with a sinking driver, or an ELV dimmer on an MLV load. When in doubt, build the dimming as a specified system.

A Note on Title 24 (Continuous Dimming Context)

If you work in California, this matters: Title 24, Part 6 requires continuous dimming for general lighting in many spaces. In broad terms, qualifying general lighting must be capable of continuous dimming down to a low percentage of full power (commonly cited as 10% or lower for LED, with exceptions for certain space types and fixture types).

0–10V dimming is one of the most common, practical ways to meet a continuous-dimming requirement on commercial LED, and it pairs naturally with the occupancy and daylight controls Title 24 also calls for. Exact thresholds, exceptions, and the current code cycle change over time — verify the requirement against the current adopted code edition for your project.
